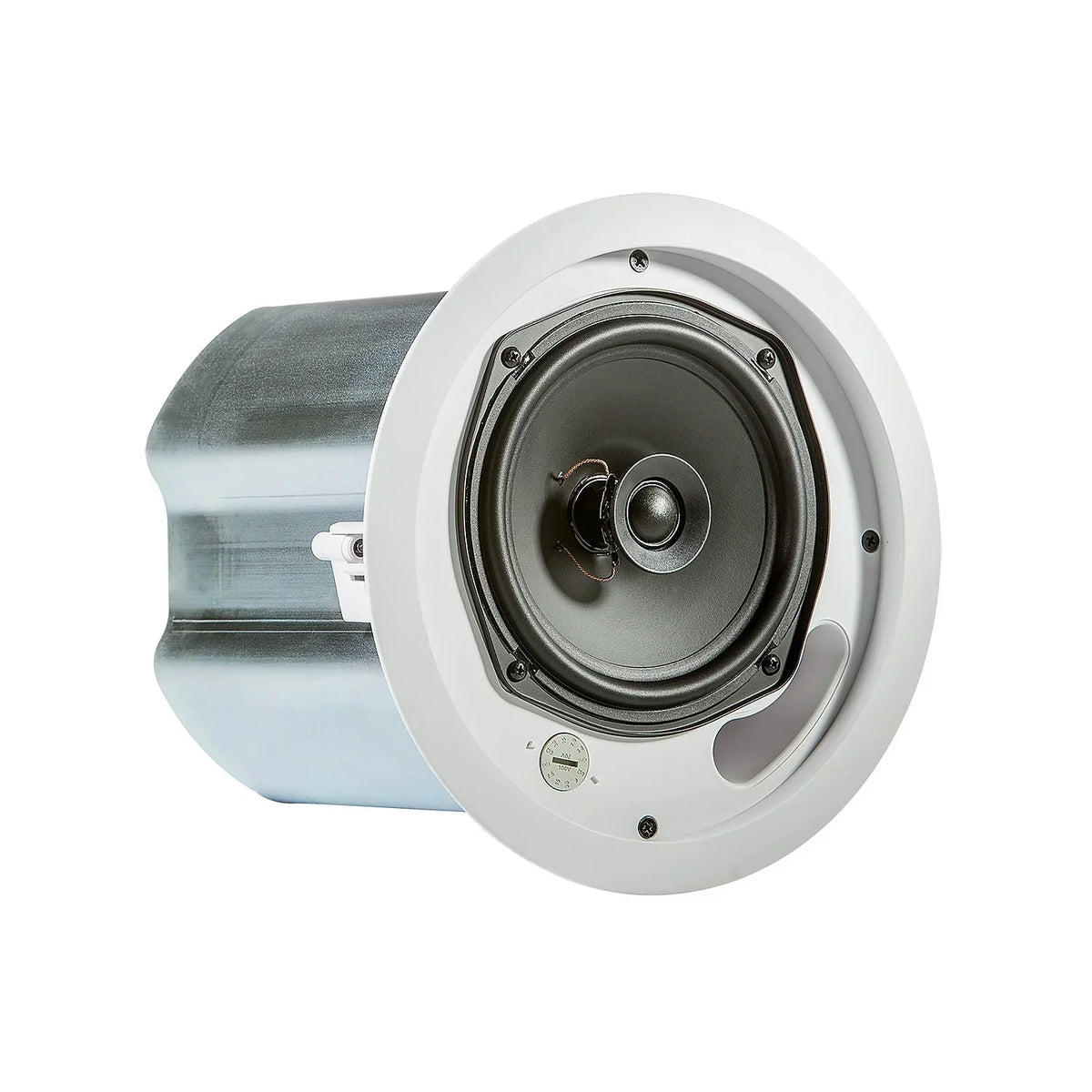

JBL Professional Control CONTROL 16C/T 100 (W) Ceiling Mountable Blind Mount Speaker White

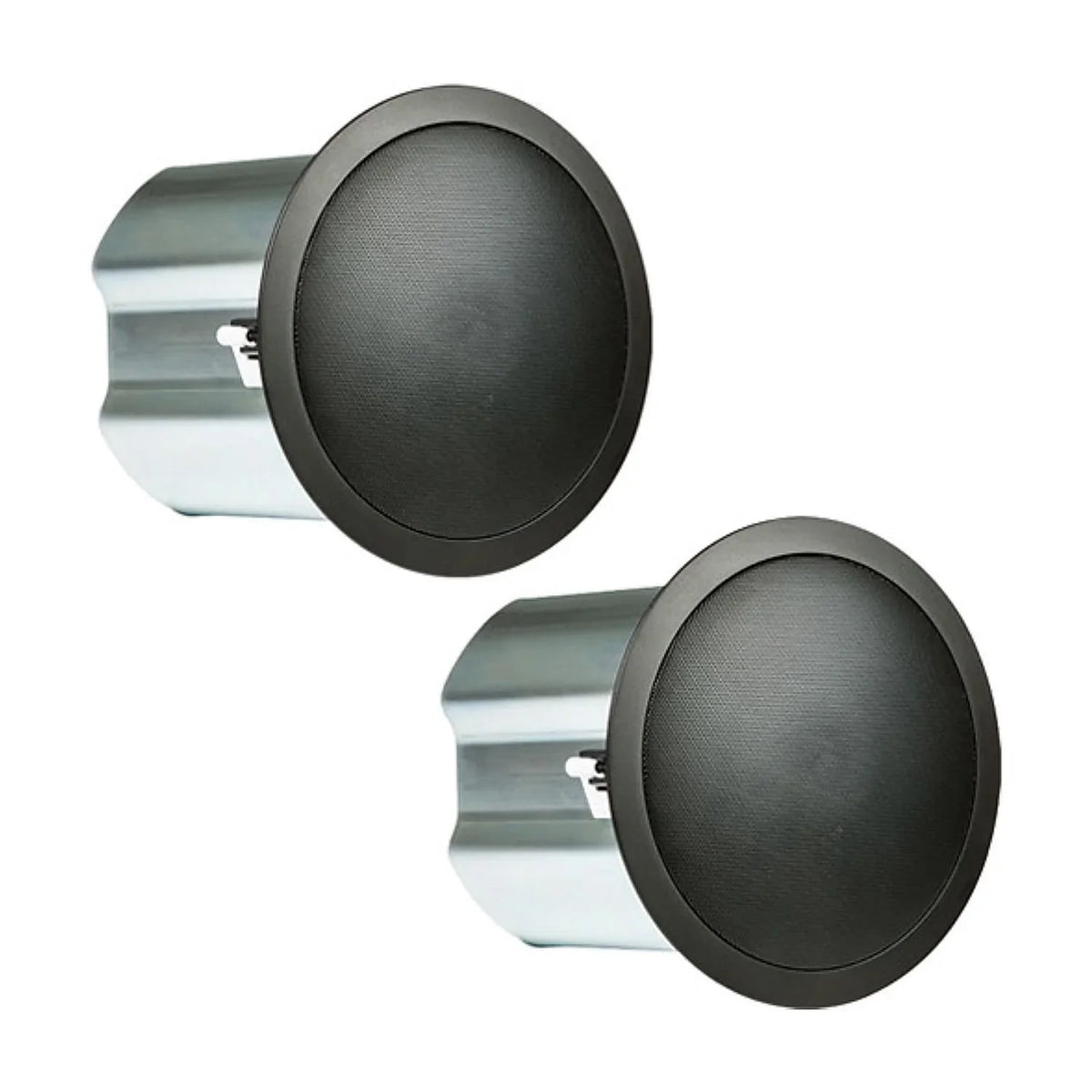

Features: (2) JBL CONTROL 16C/T 6.5" 30 Watt 70v Commercial Ceiling Speakers For Restaurant/Bar. Components: 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround 19 mm (0.75 in) soft-dome liquid-cooled tweeter. 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround. 19 mm (0.75 in) soft-dome liquid-cooled tweeter. Blind-mount backcan for quick and easy install. Dual conduit/cable clamps Combined 70V/100V and low impedance direct operation 50 Watts at 8? nominal setting 30W multi-tap at 70V/100V. 50 Watts at 8? nominal setting. 30W multi-tap at 70V/100V. 62 Hz 20 kHz bandwidth with wide 110 coverage. High 91 dB sensitivity for high maximum SPL. Color: White. Components: 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround. 19 mm (0.75 in) soft-dome liquid-cooled tweeter. Combined 70V/100V and low impedance direct operation 50 Watts at 8? nominal setting. 30W multi-tap at 70V/100V. Detailss: Frequency Range (-10 dB): 62 Hz 20 kHz. Power Capacity (at low-Z) 100 Watts Continuous Program Power 50 Watts Continuous Pink Noise. 100 Watts Continuous Program Power. 50 Watts Continuous Pink Noise. Transformer Taps: 30 W; 15 W; 7.5 W @ 70V or 100V(plus 3.8 W @ 70V only). Frequency Response (3 dB): 96 Hz 15 kHz. Nominal Sensitivity: 91 dB. Nominal Coverage Angle: 110 conical coverage. Directivity Factor (Q): 7.8 Directivity Index (DI): 8.2 dB. Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average; 116 dB peak. Nominal Impedance: 8 ohms (in direct/bypass 8? setting). Crossover Network 12 dB/oct (2nd order) low-pass to LF driver; 12 dB/oct (2nd order) high-pass to HF driver. 12 dB/oct (2nd order) low-pass to LF driver;. 12 dB/oct (2nd order) high-pass to HF driver. LF Driver: 165 mm (6.5 inch) with polypropylene cone; butyl rubber surround; anodized aluminum voice coil former; high temperature voice coil HF Driver: 19 mm (3/4 in); highly-damped treated-silk dome; Kapton voice coil; liquid cooling; wide dispersion waveguide. Input Connector: Removable locking 4-pin connector with screw-down terminals.Max wire size 12 AWG (2.5 mm2). Connector Wiring: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru. Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
